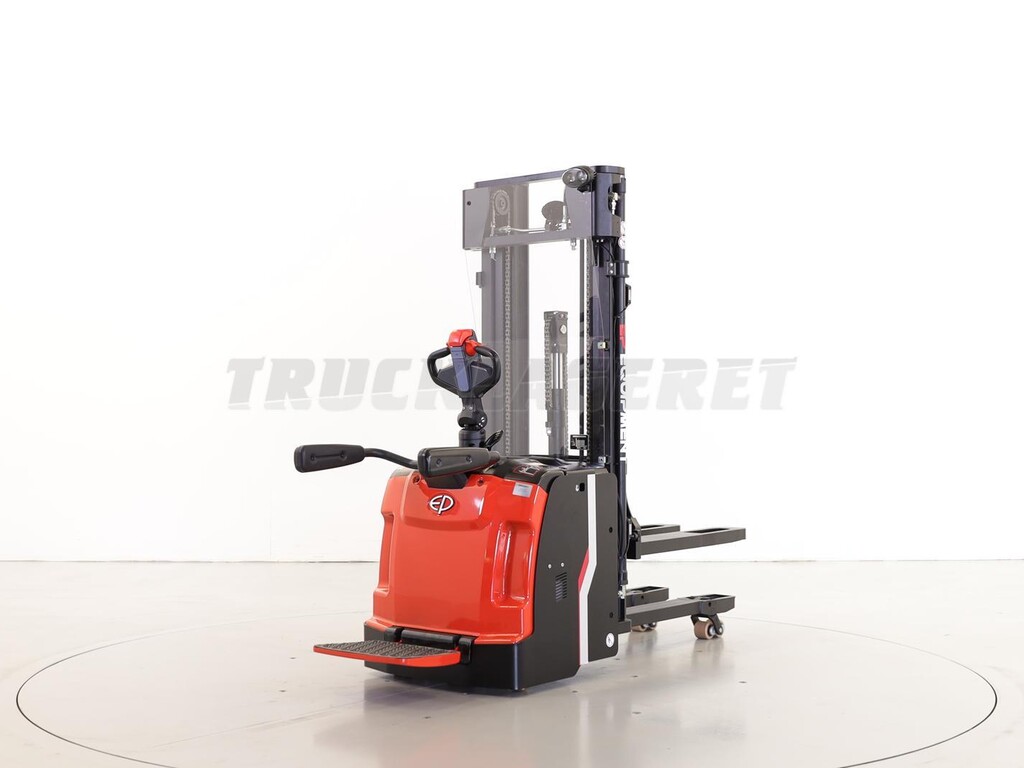

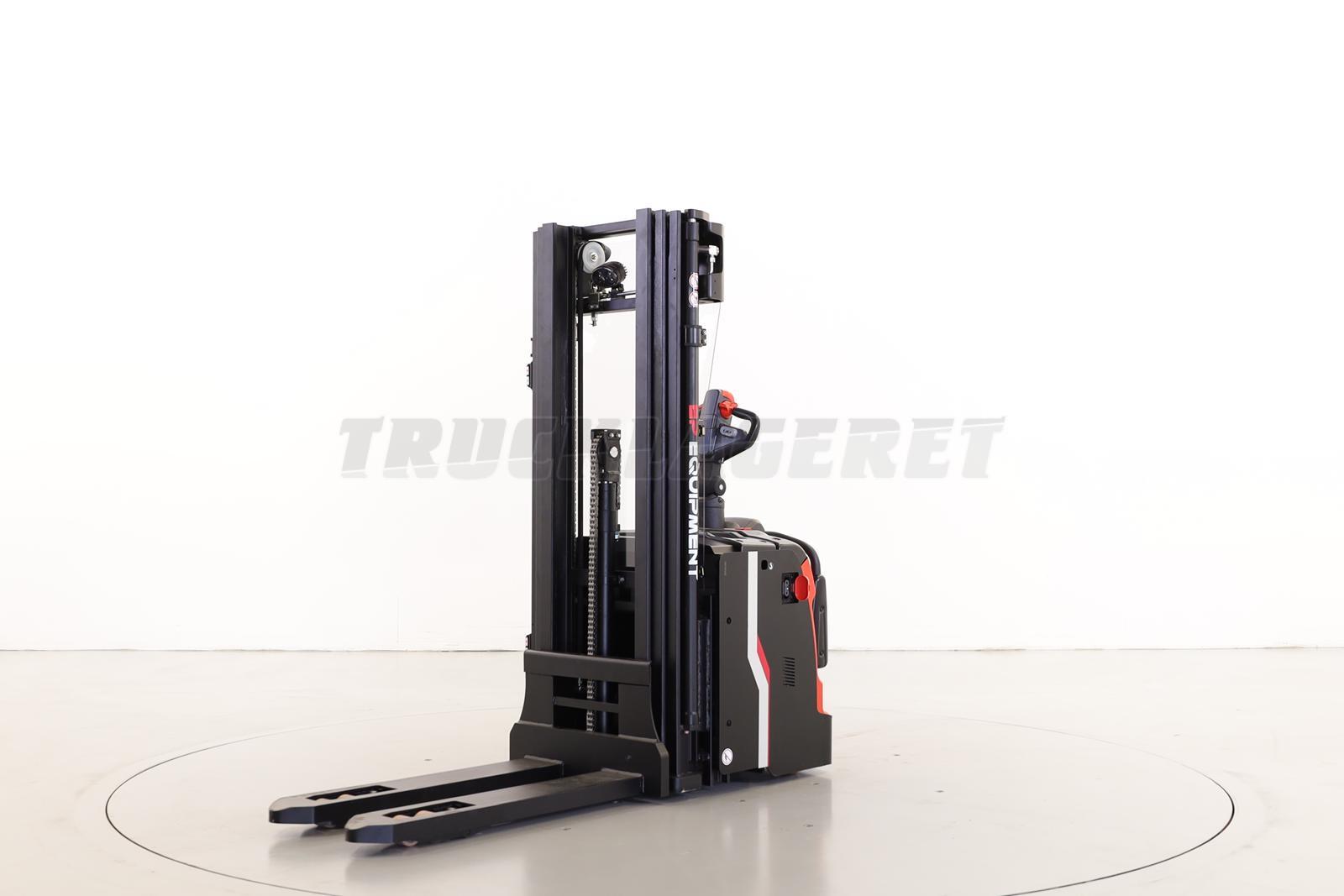

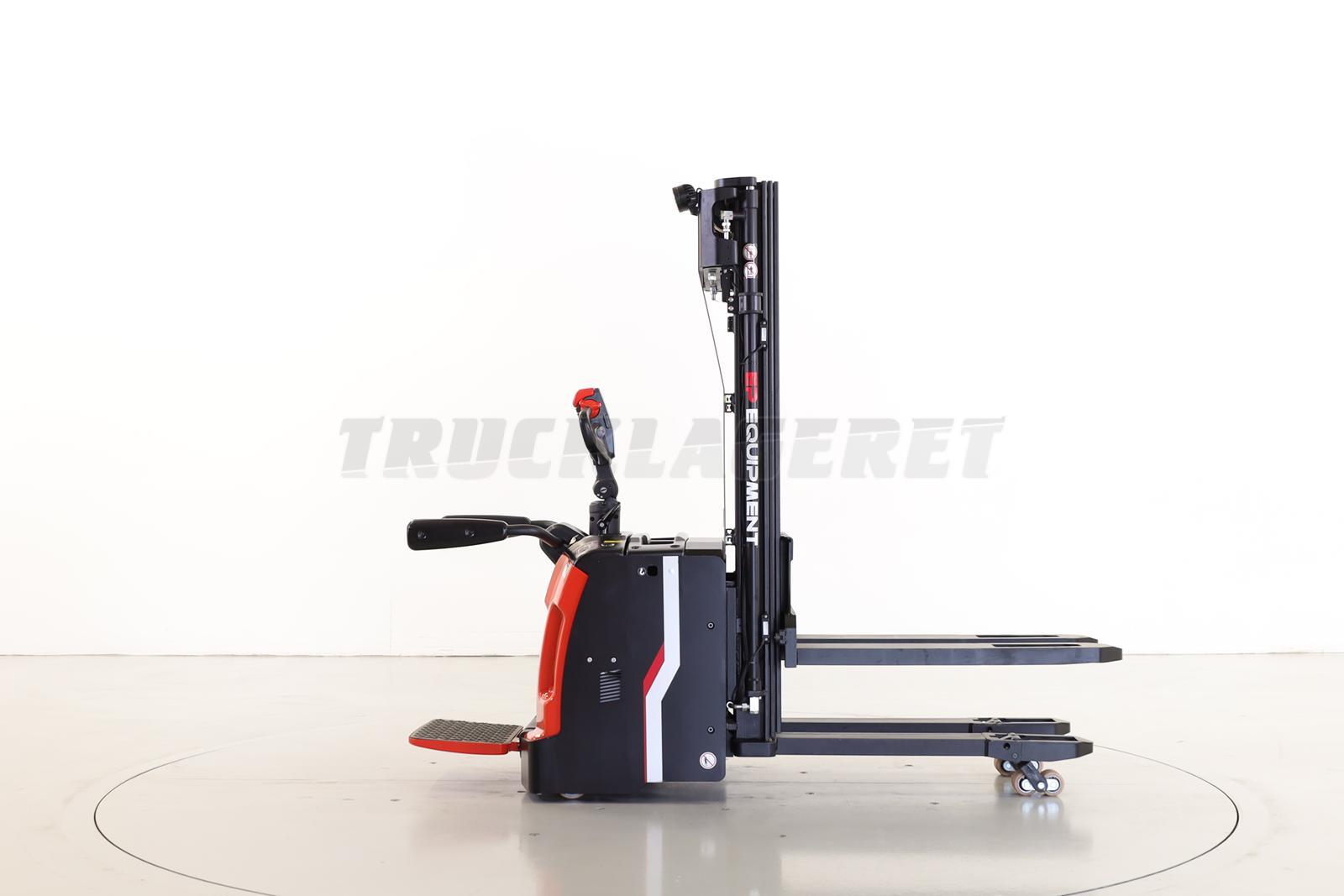

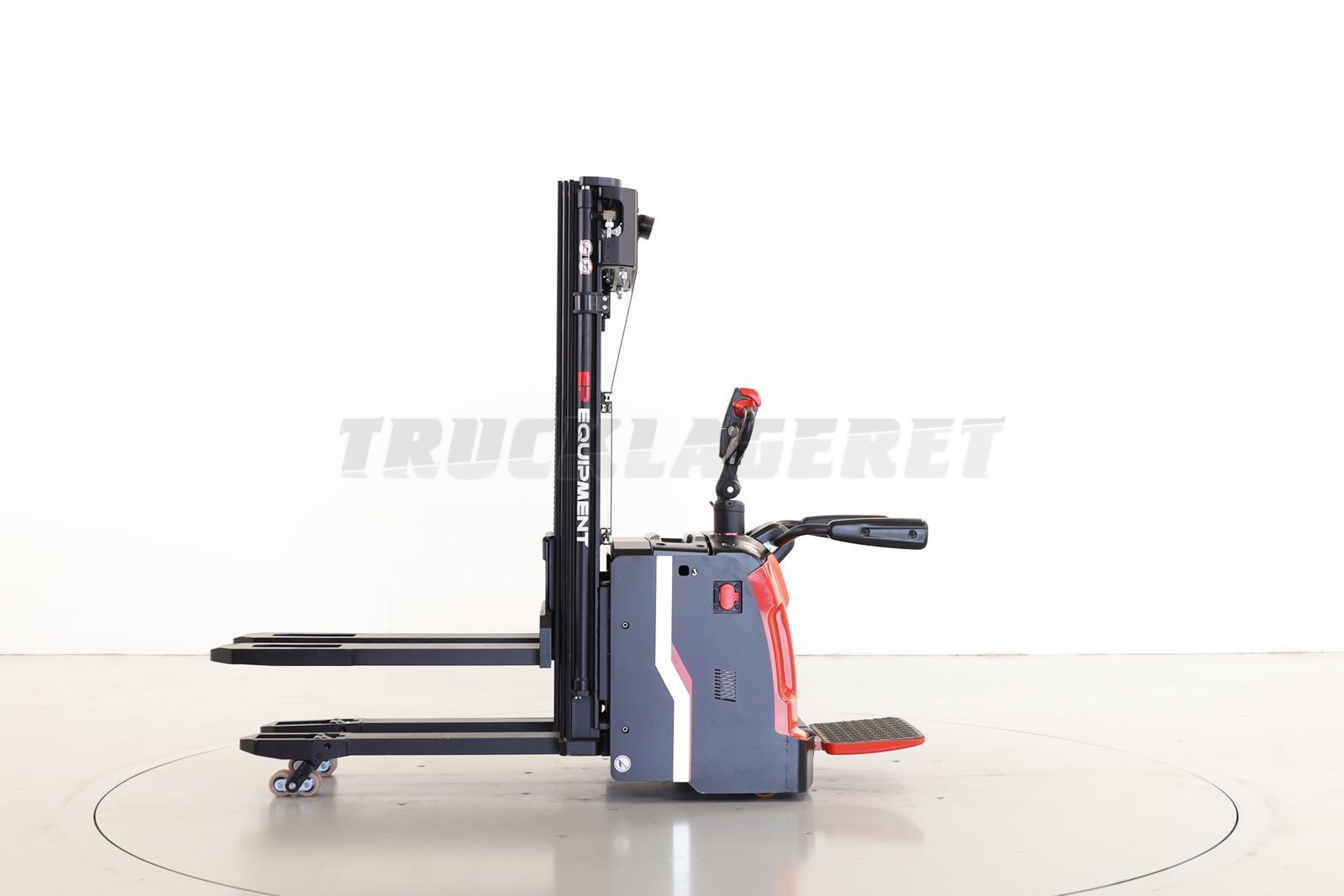

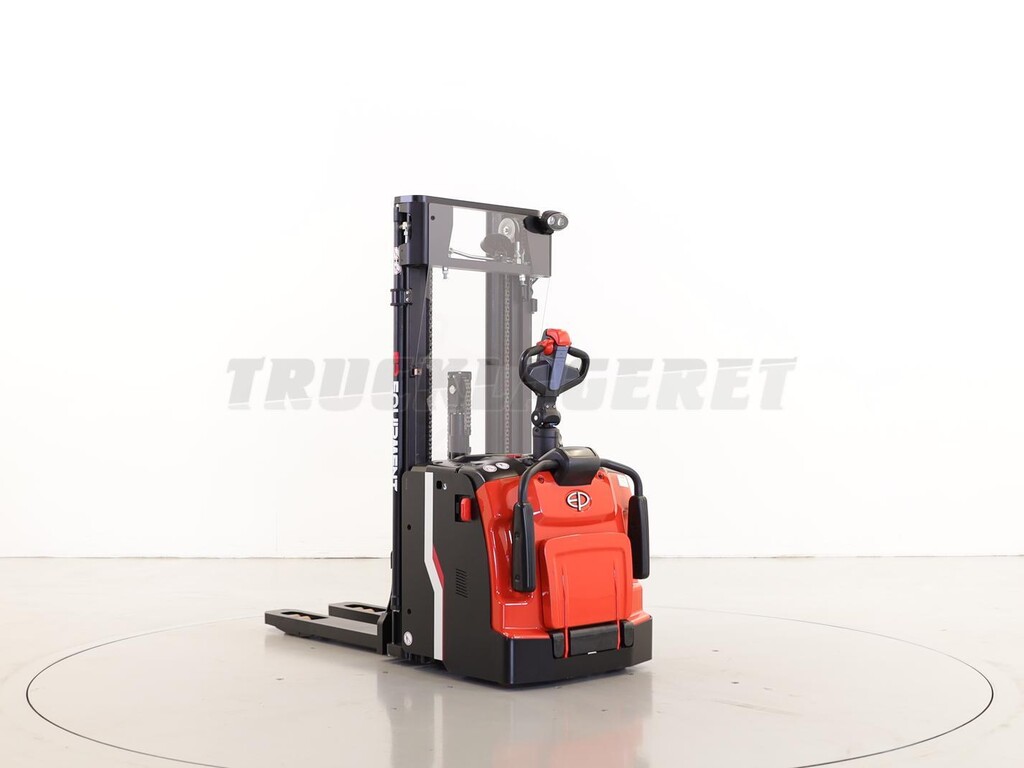

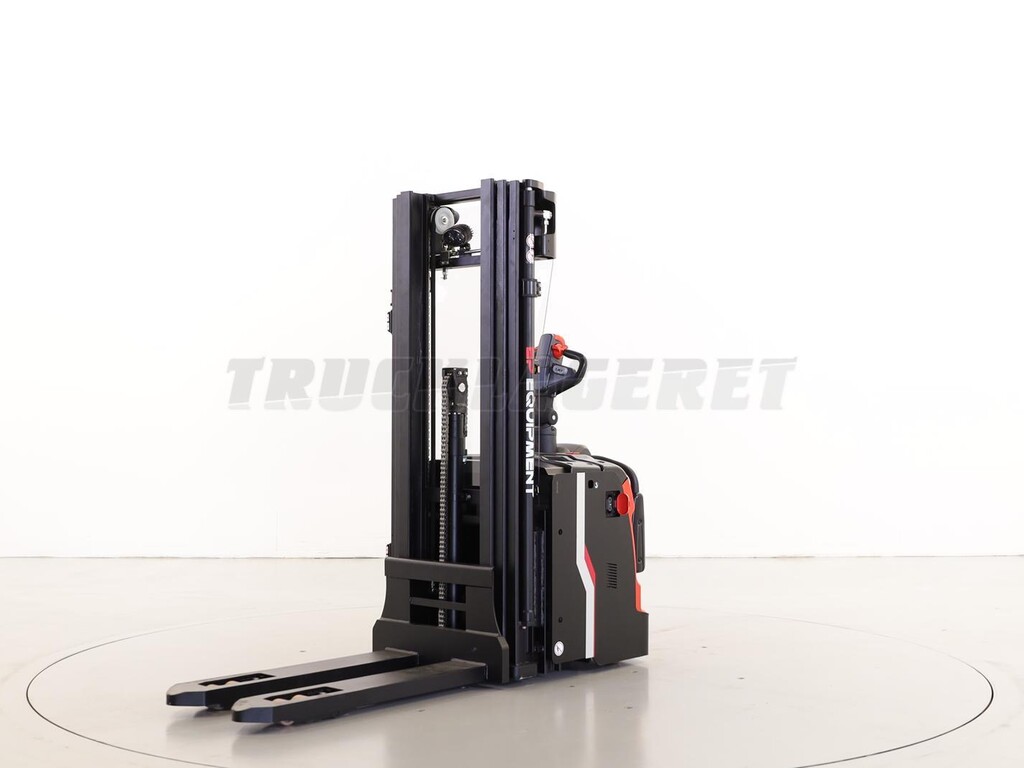

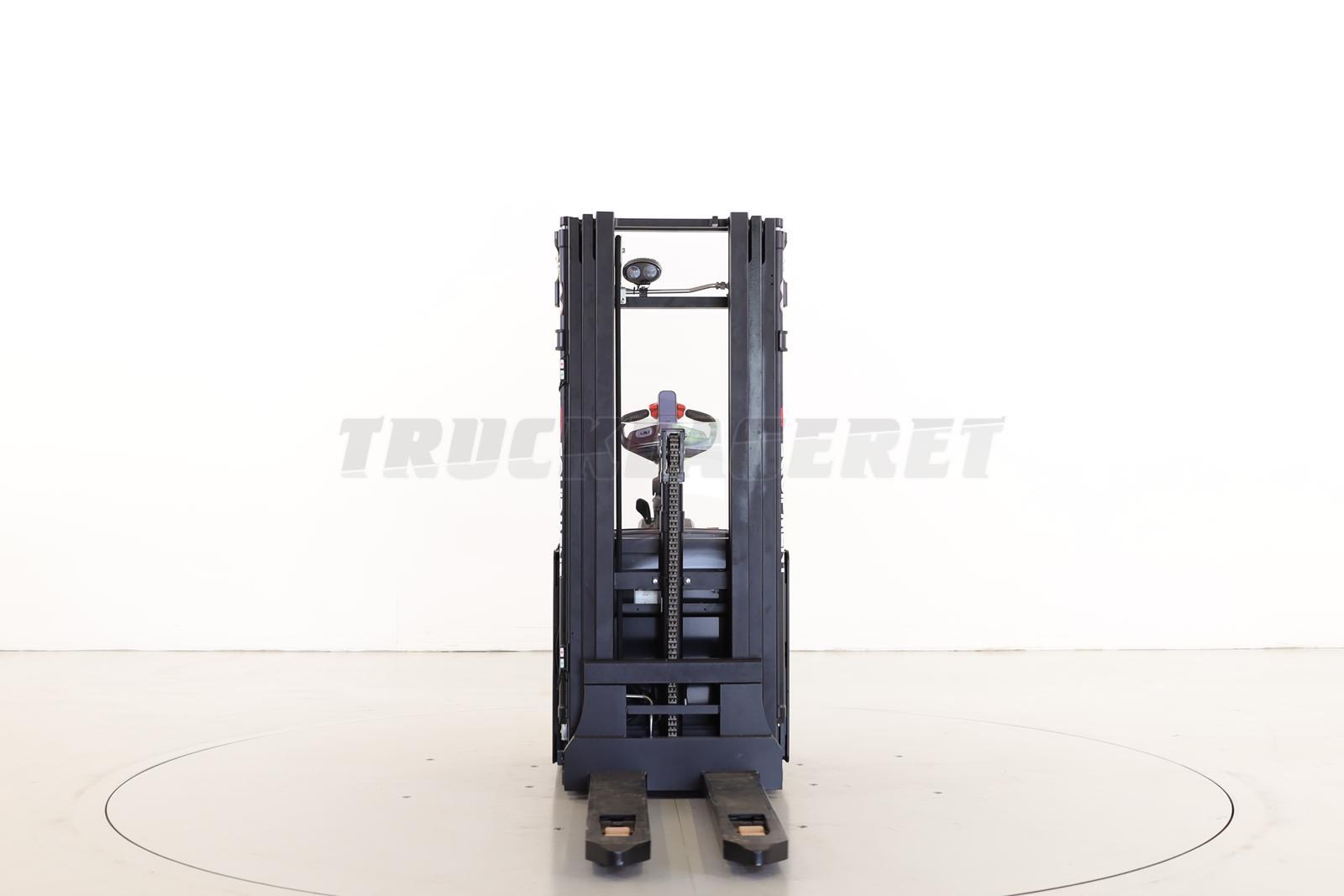

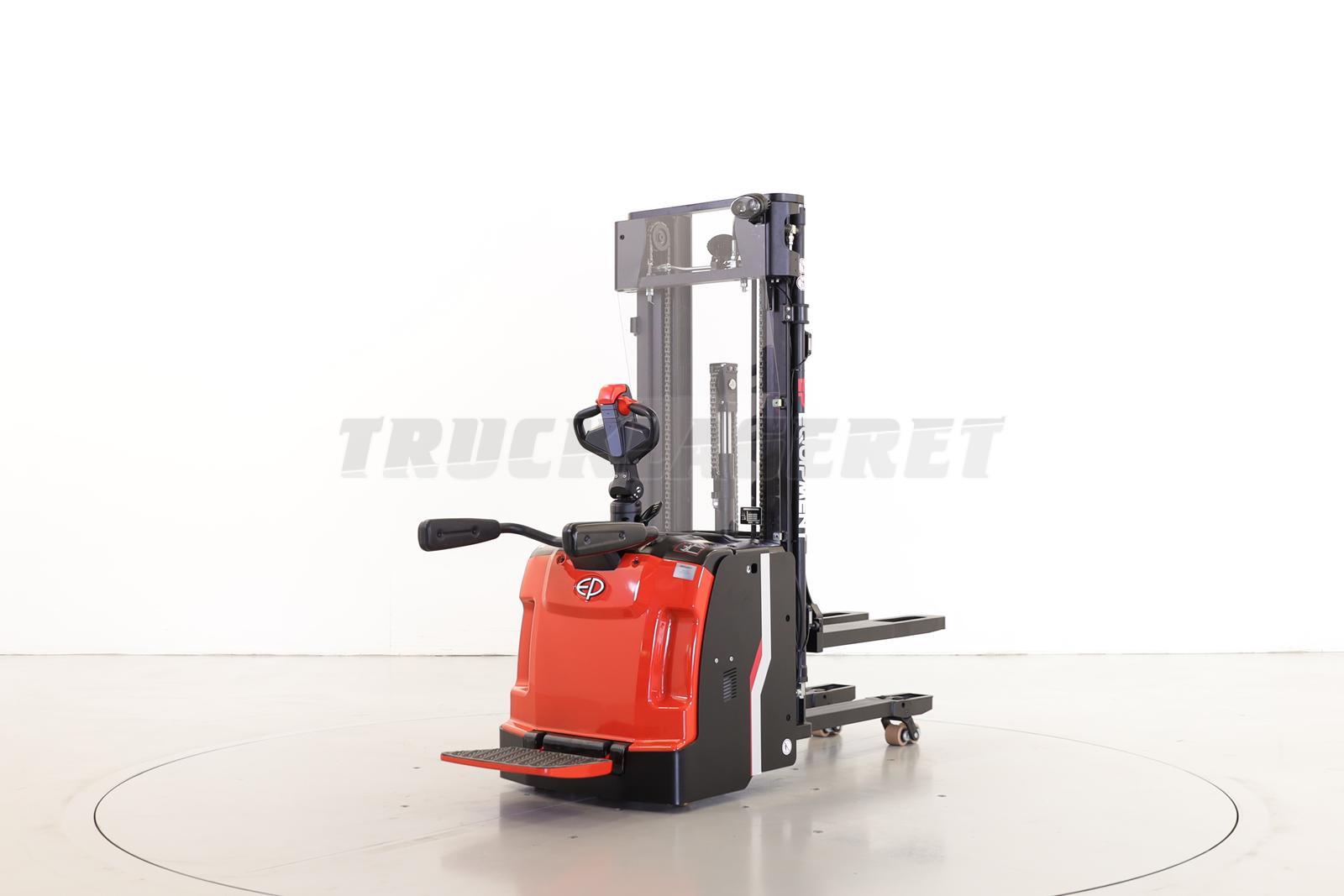

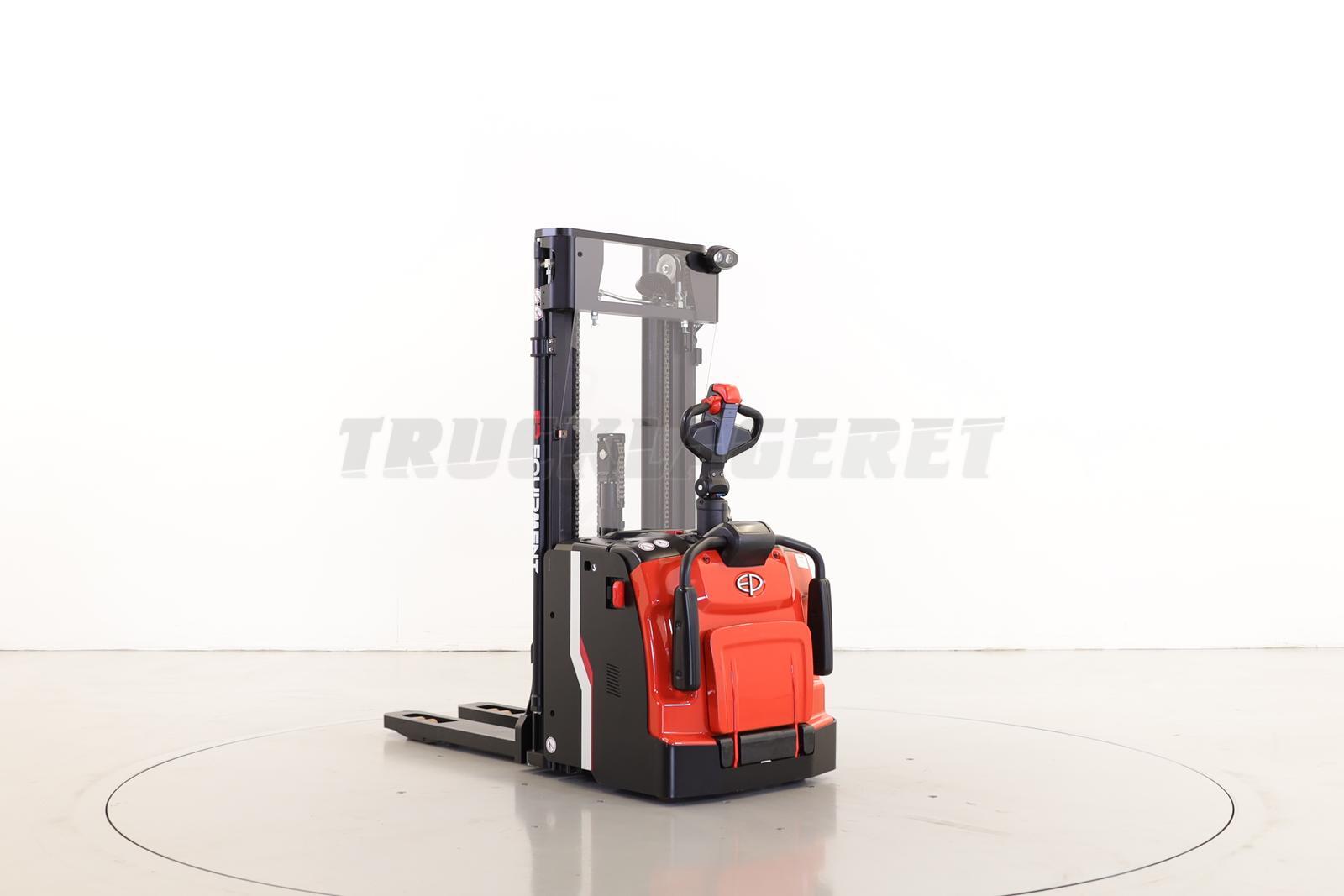

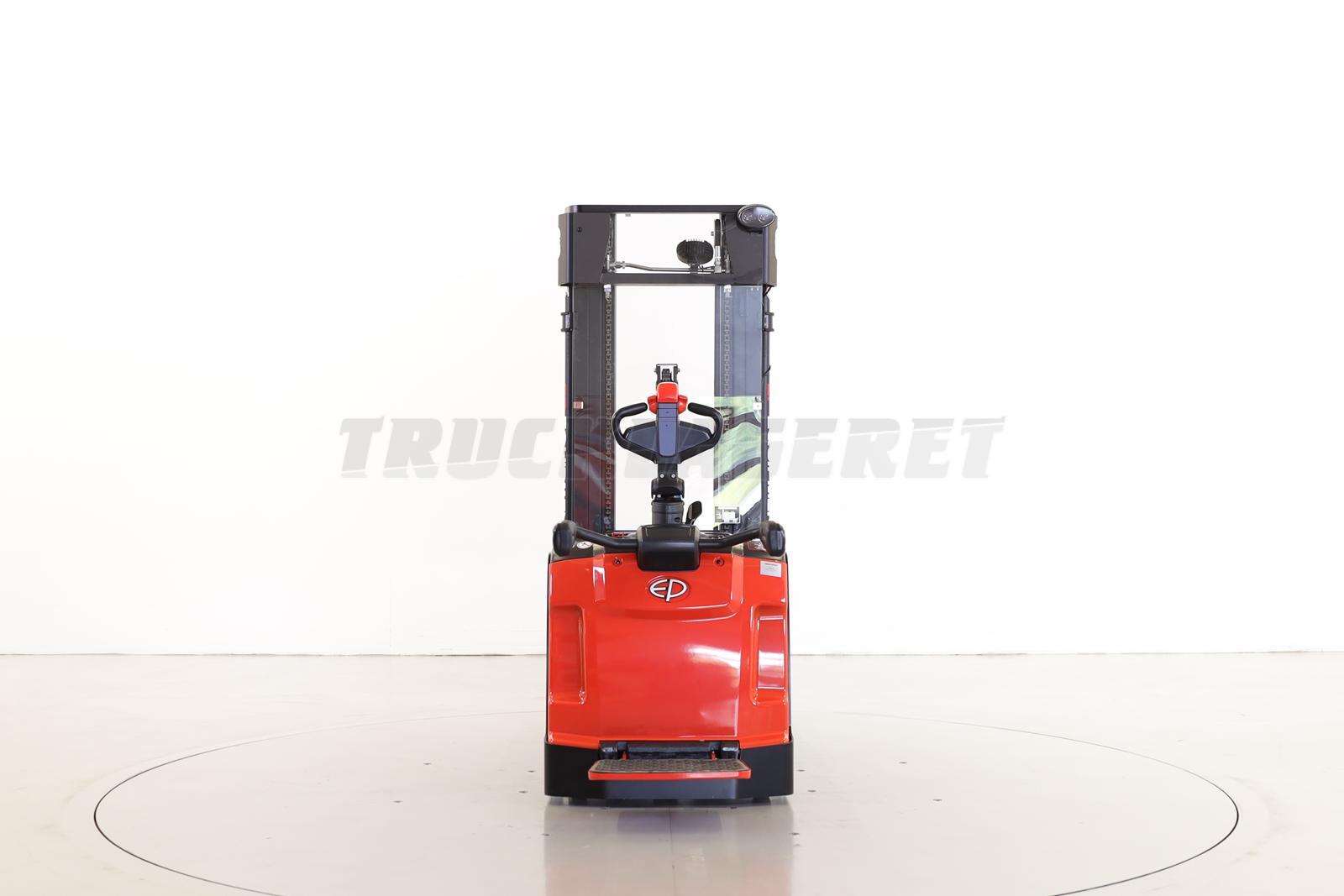

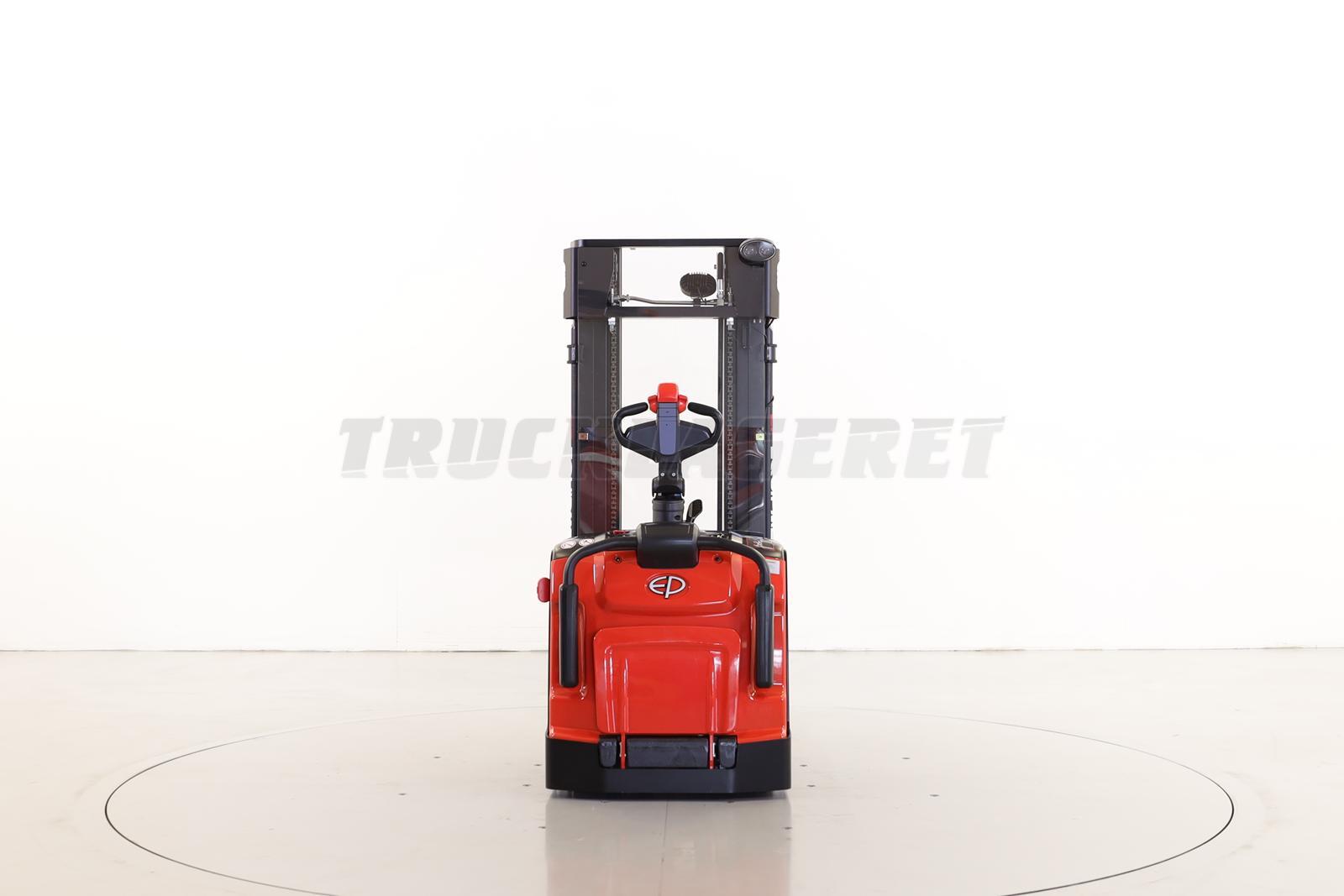

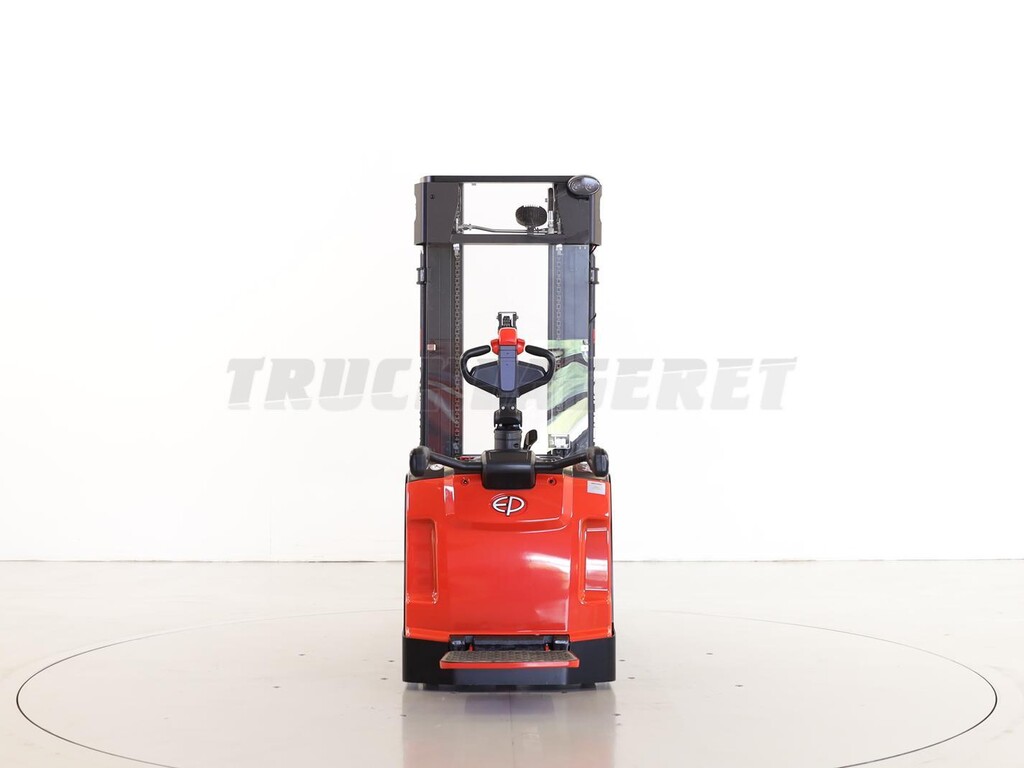

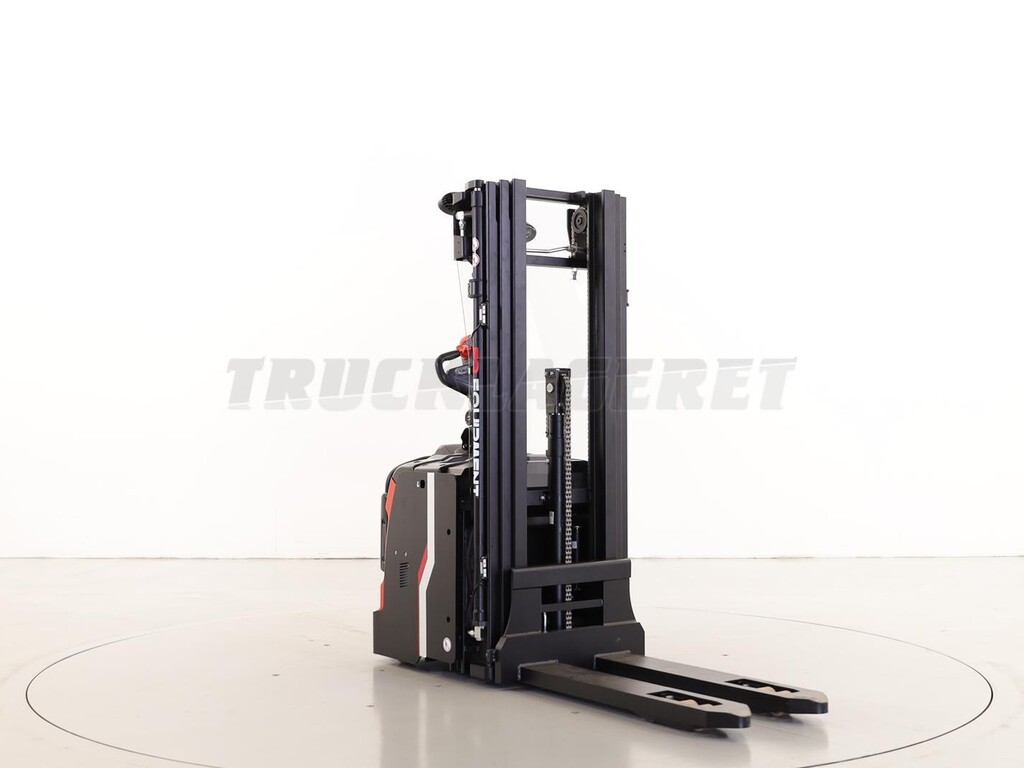

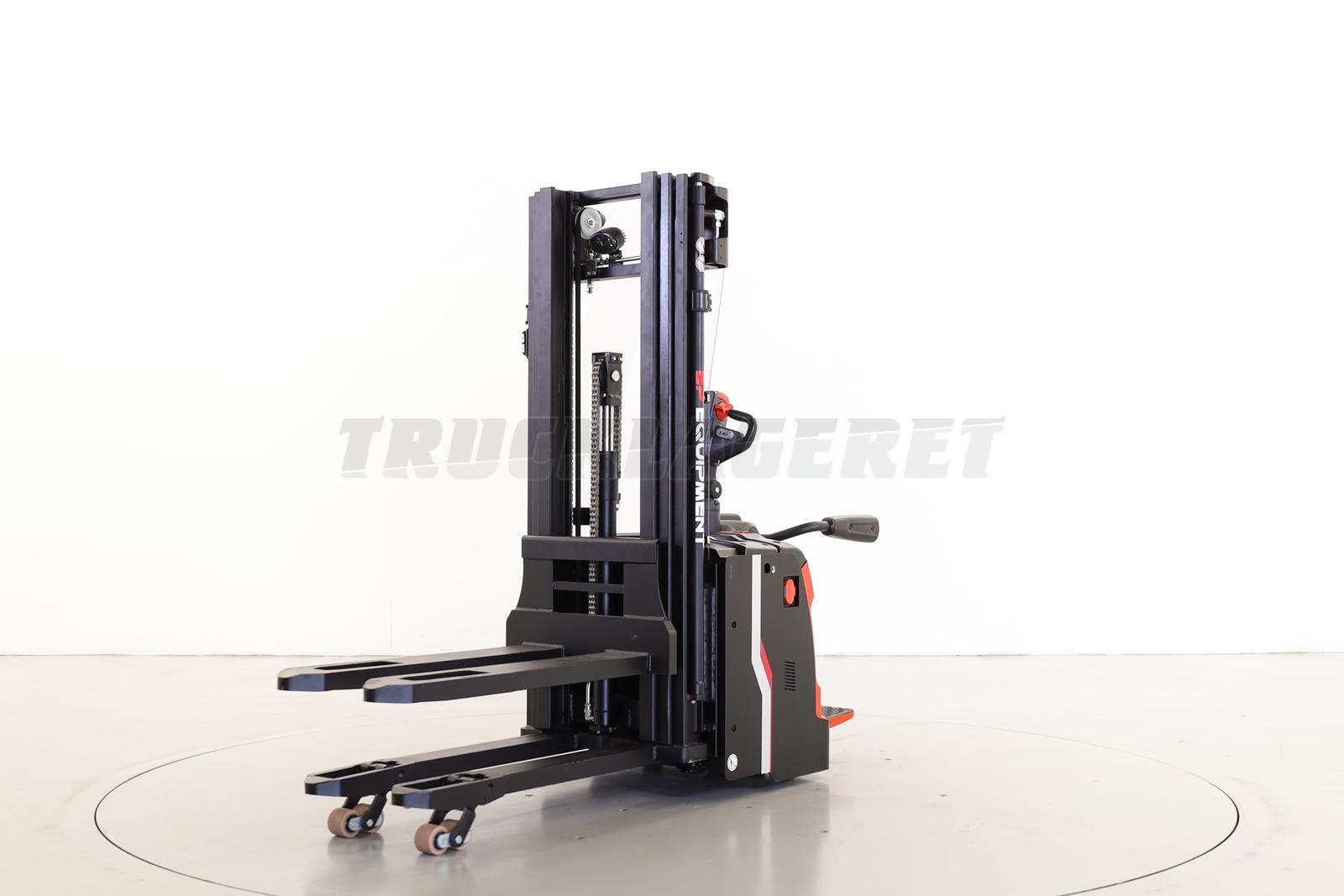

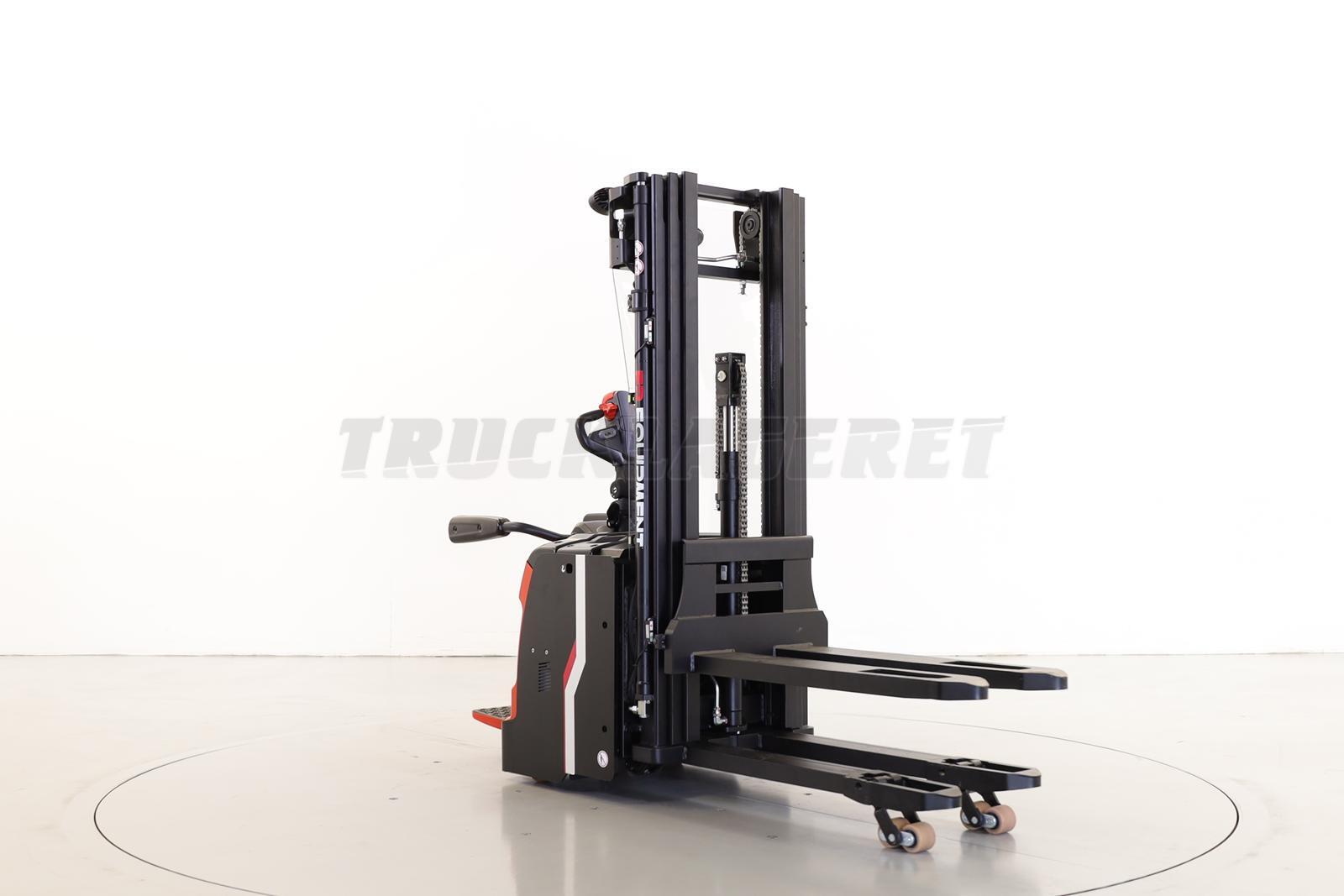

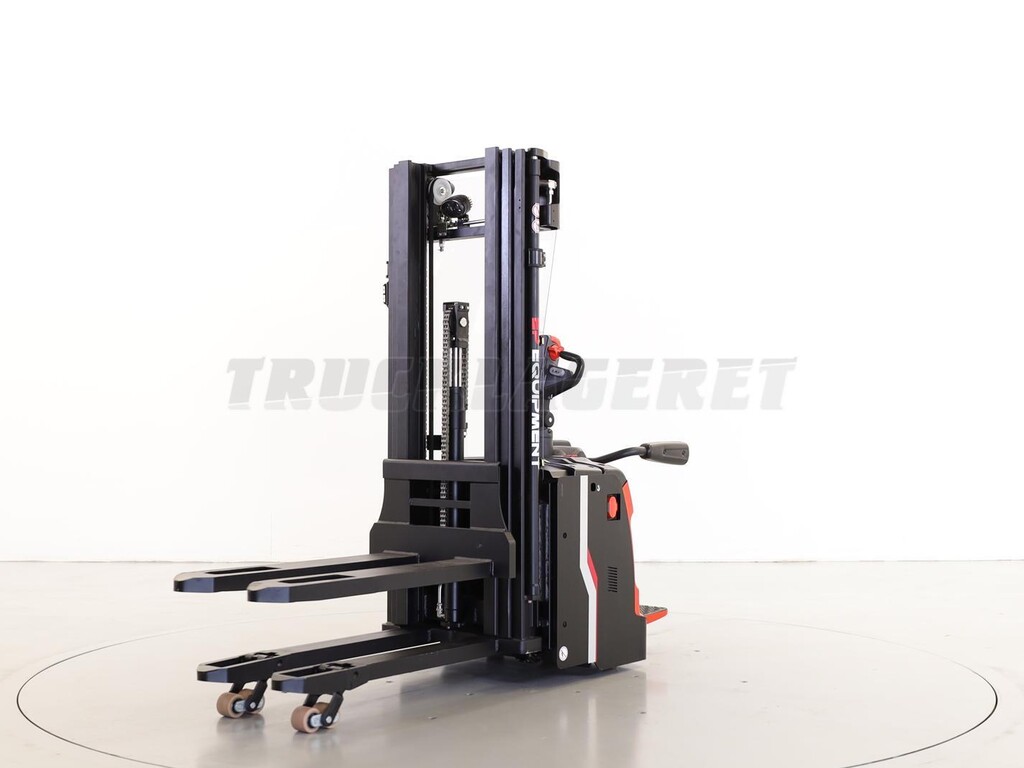

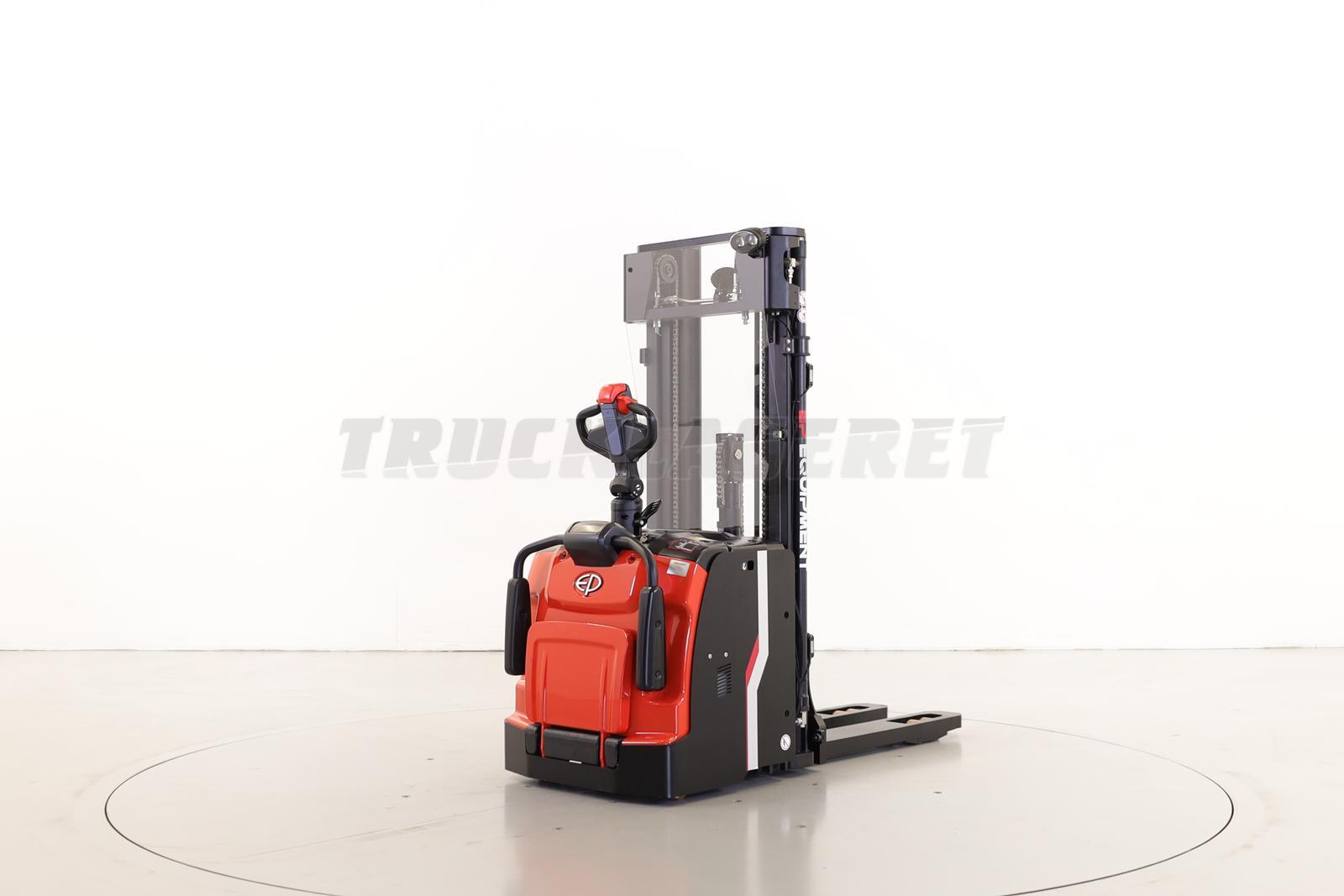

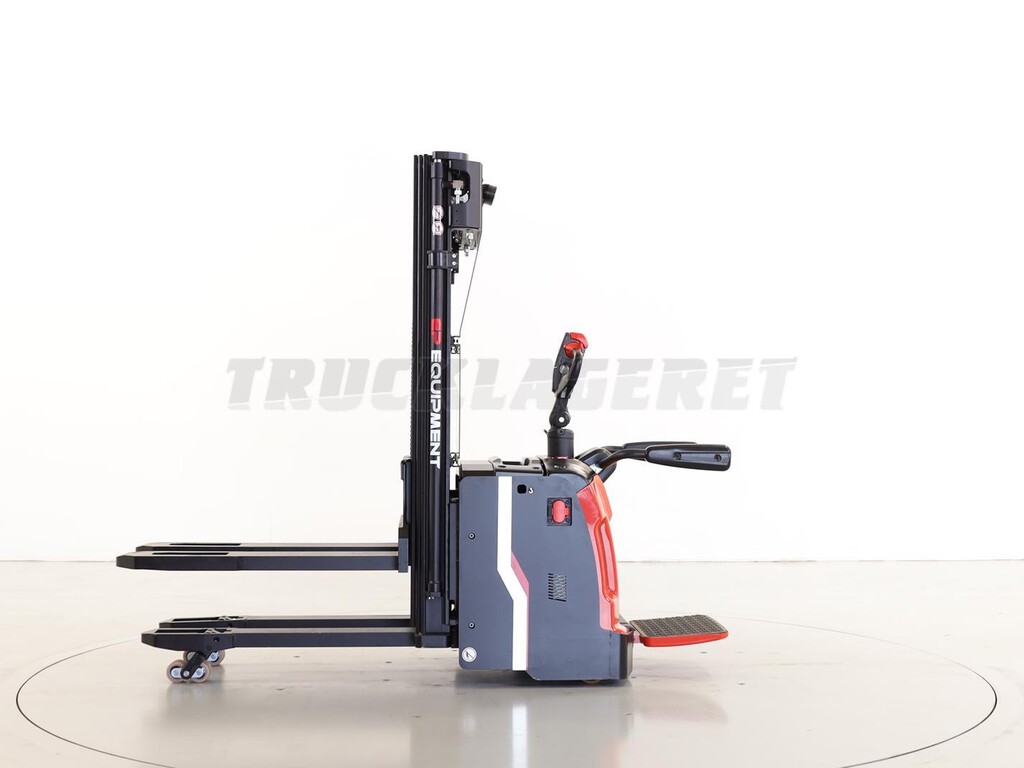

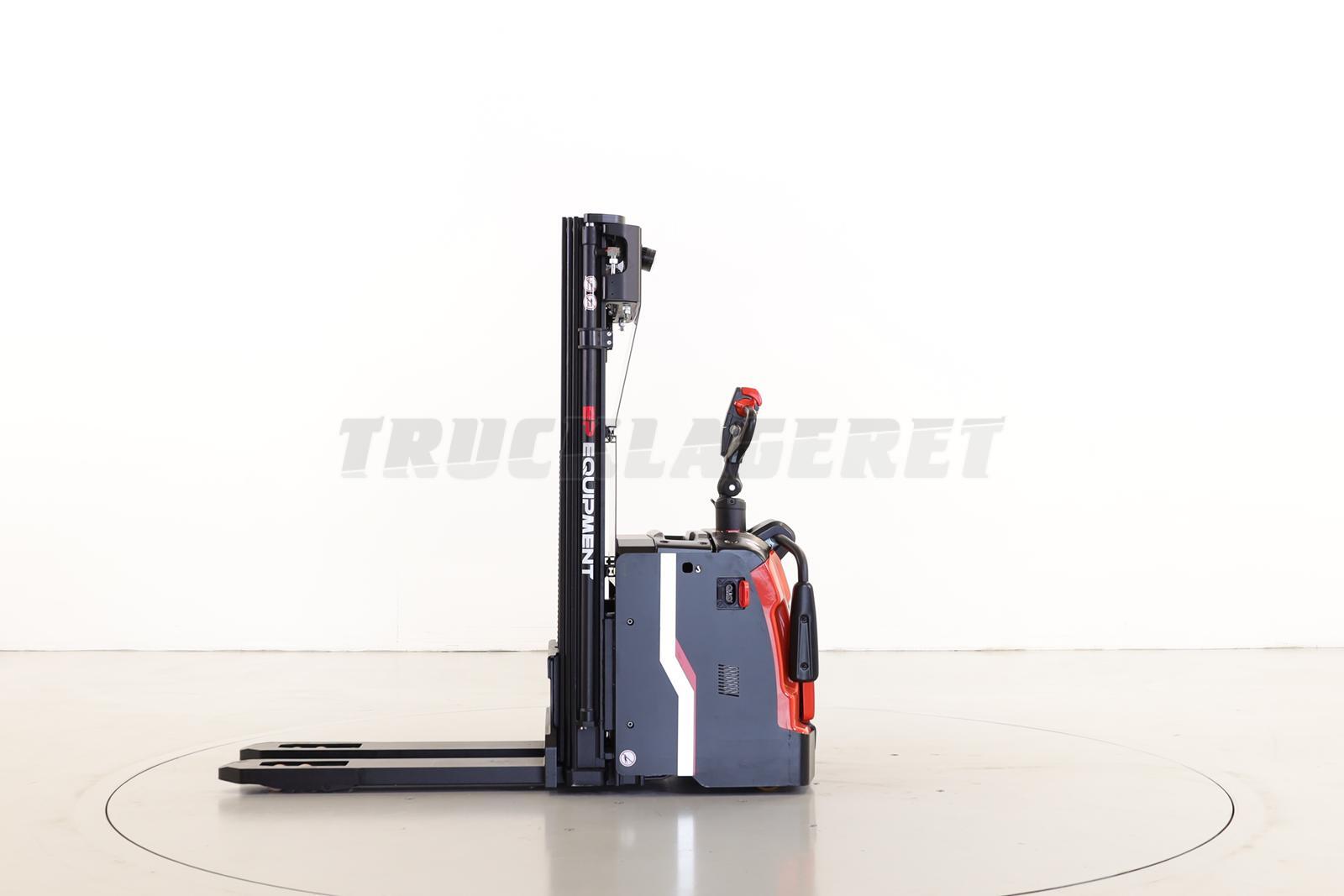

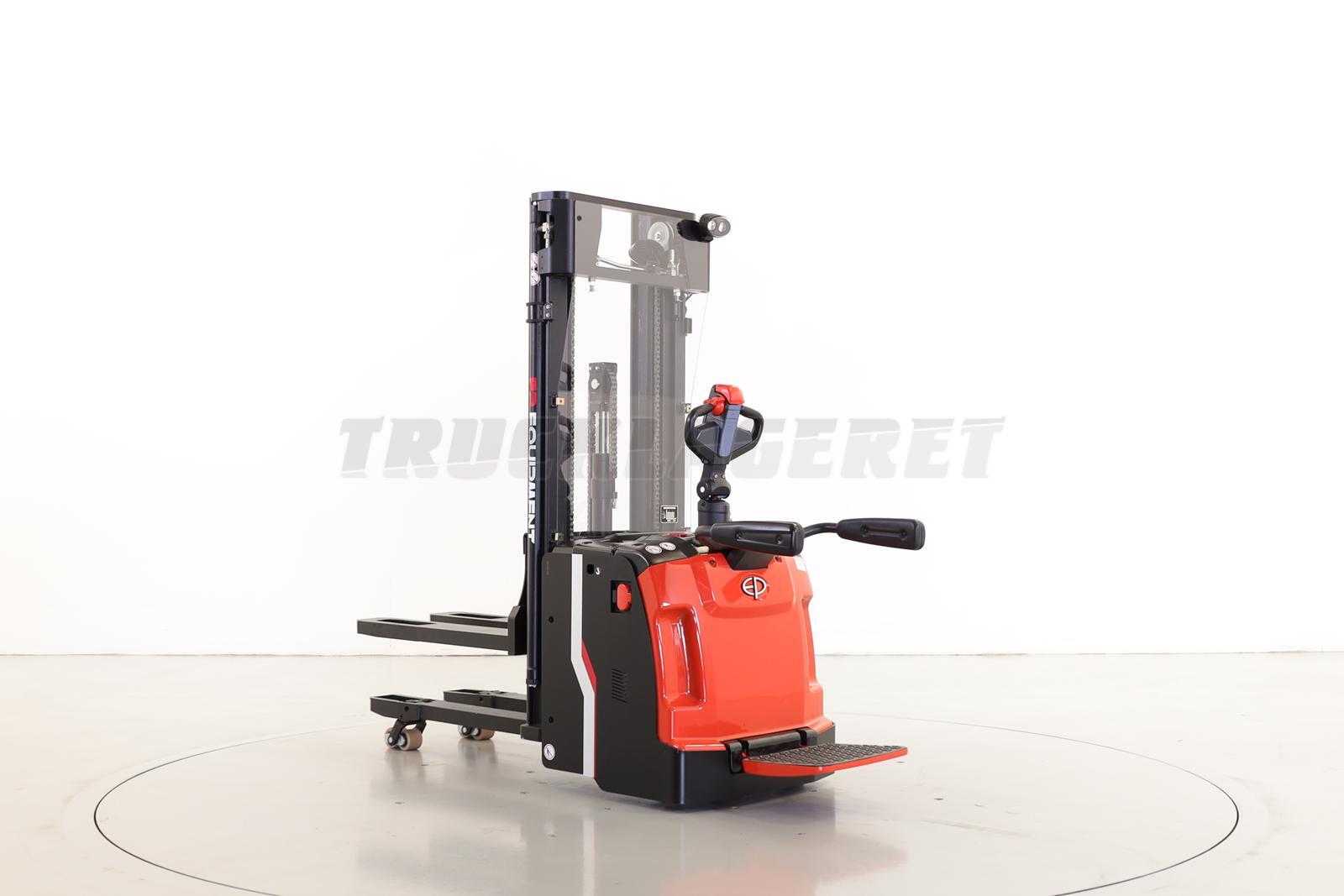

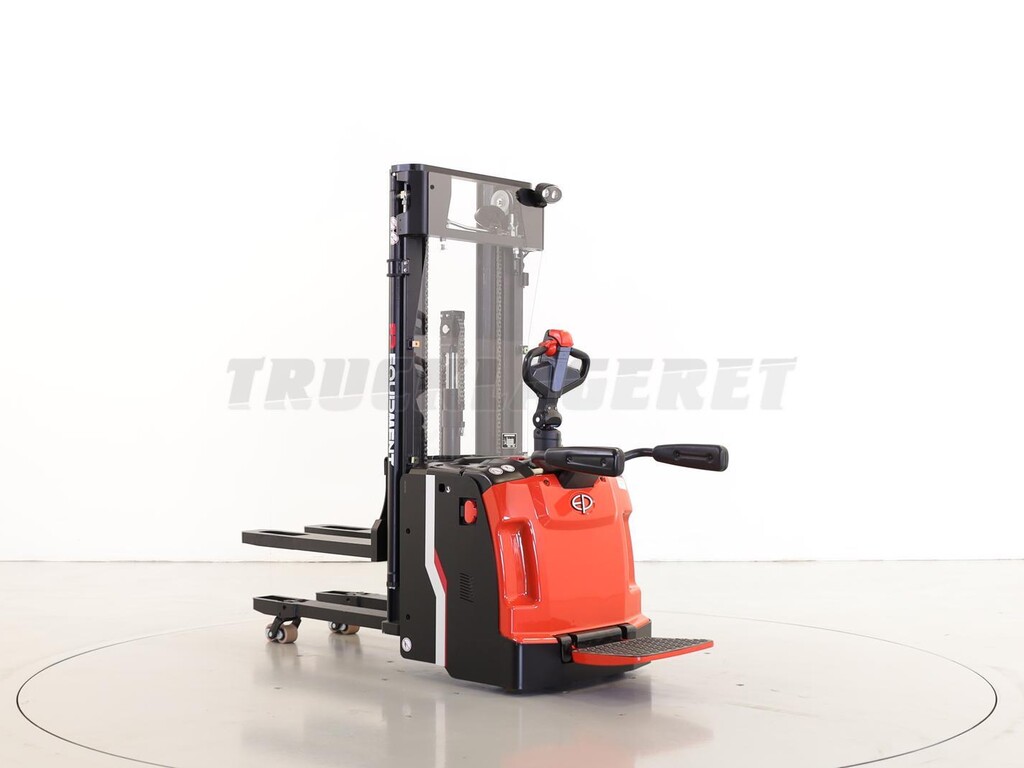

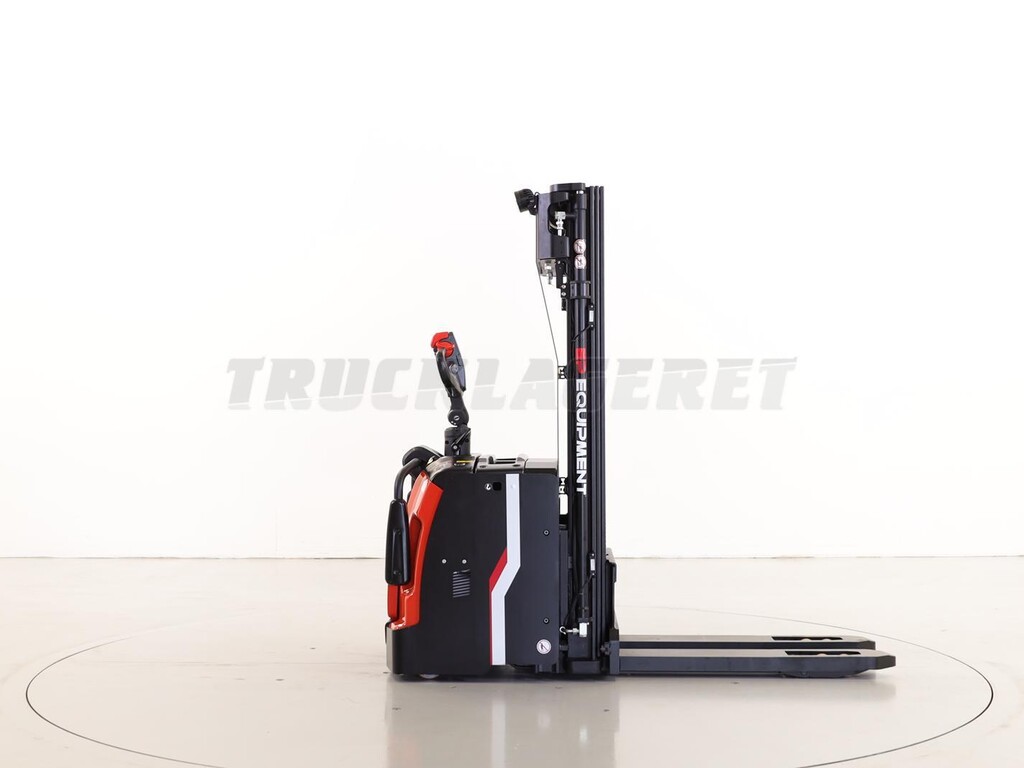

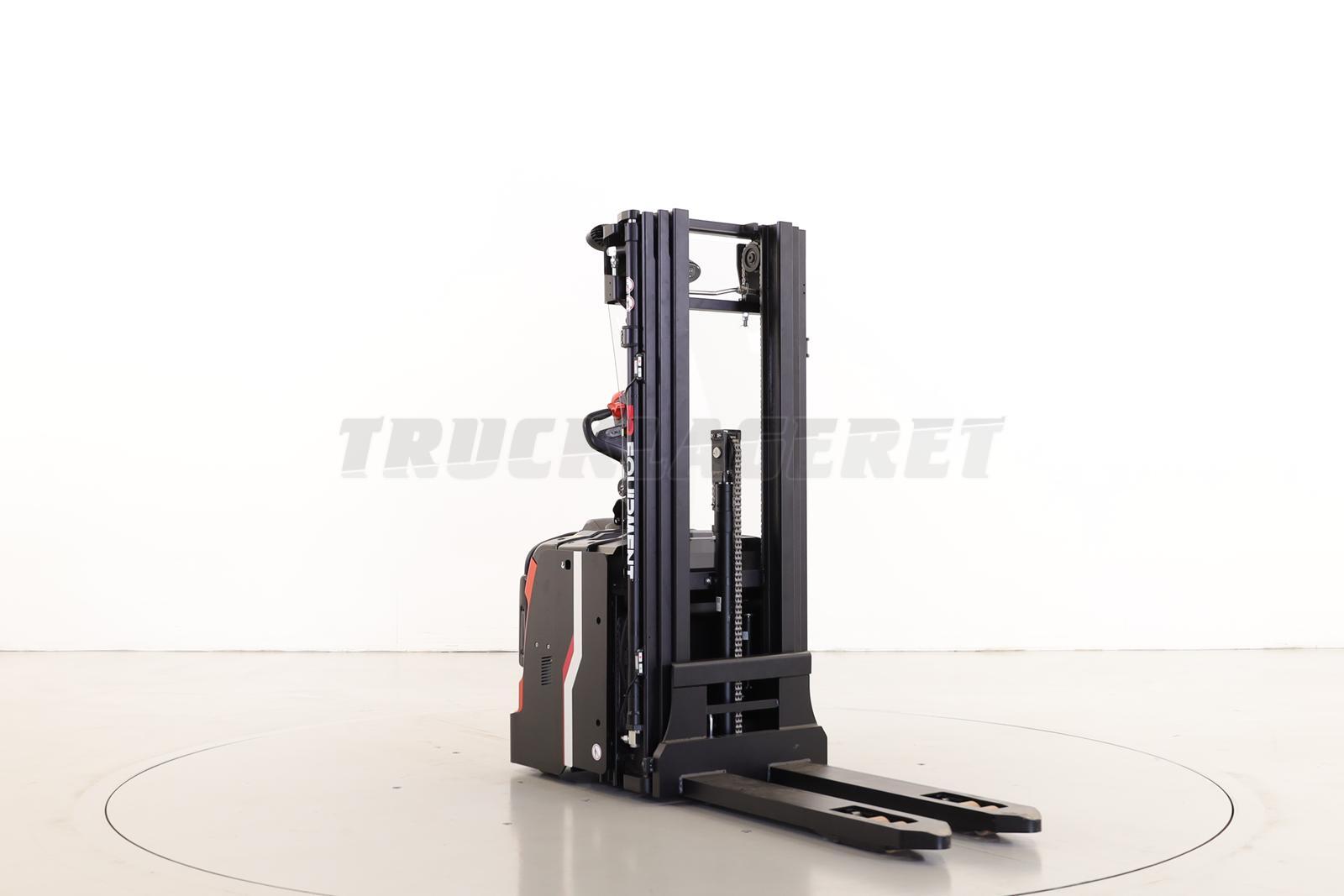

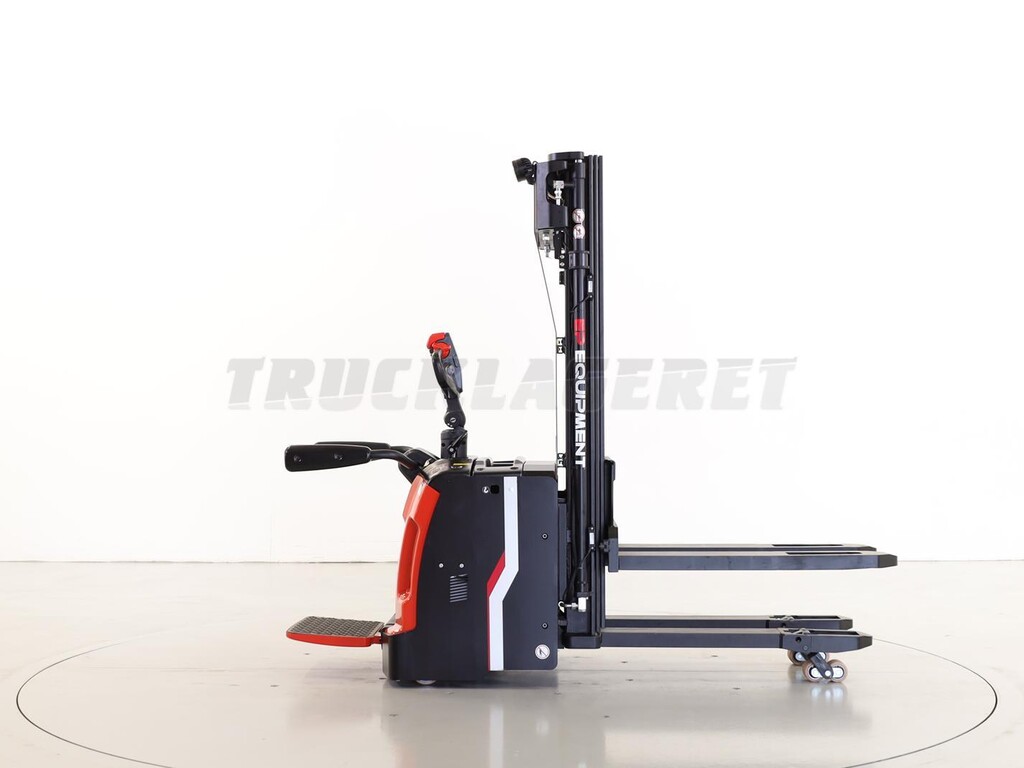

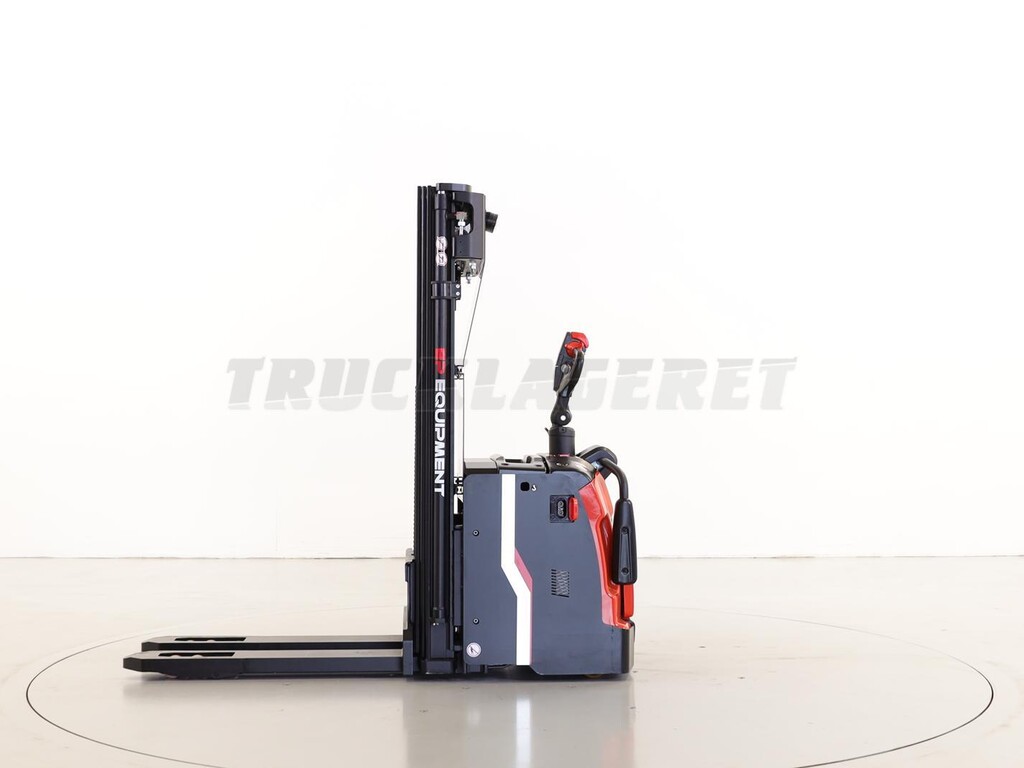

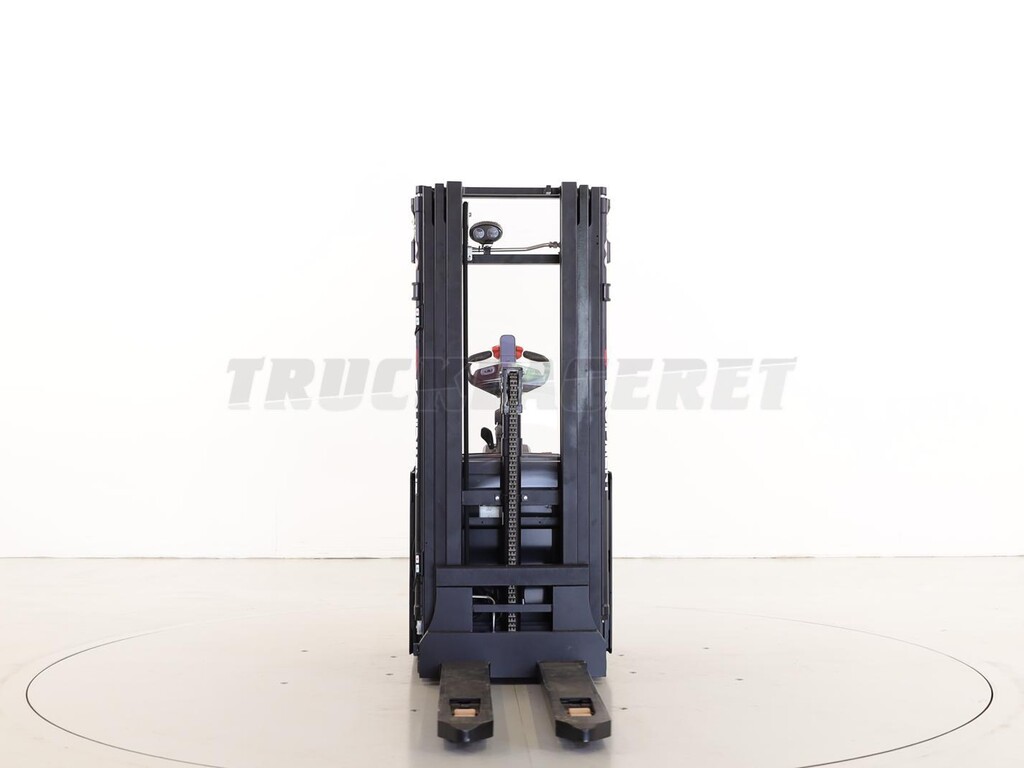

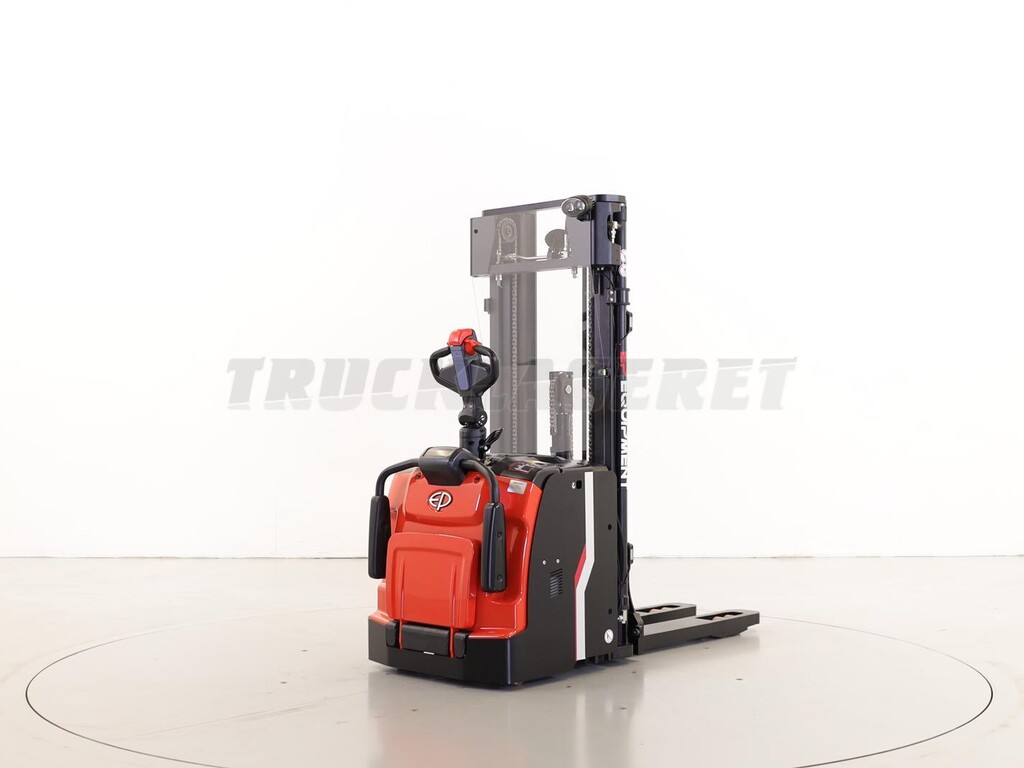

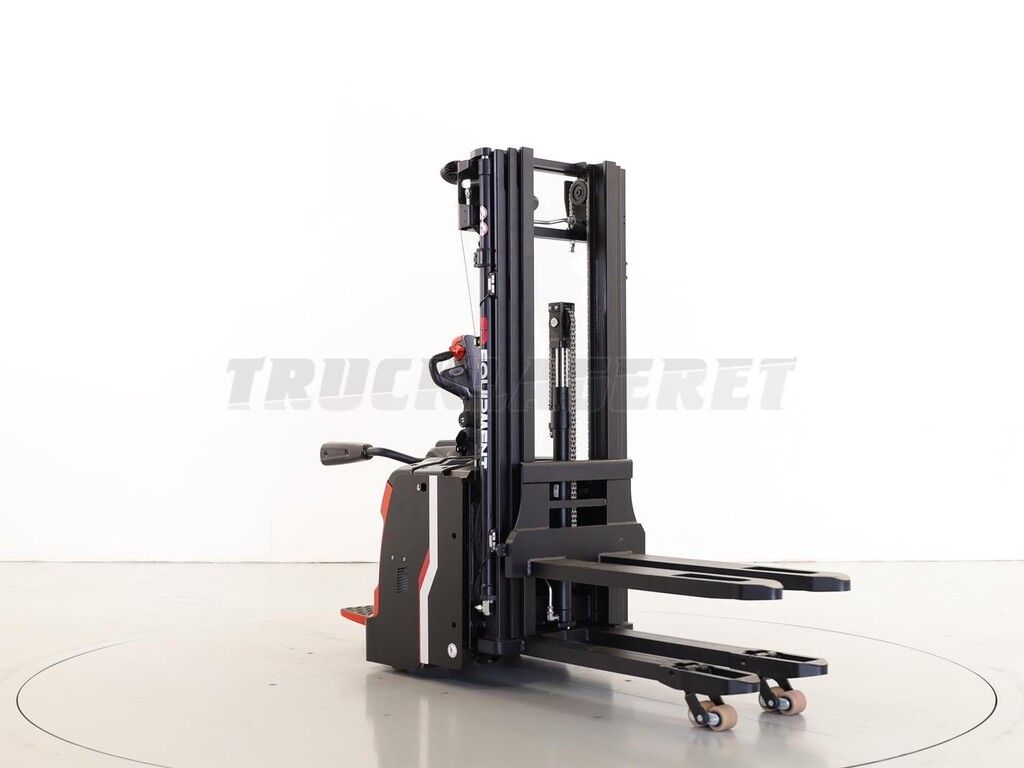

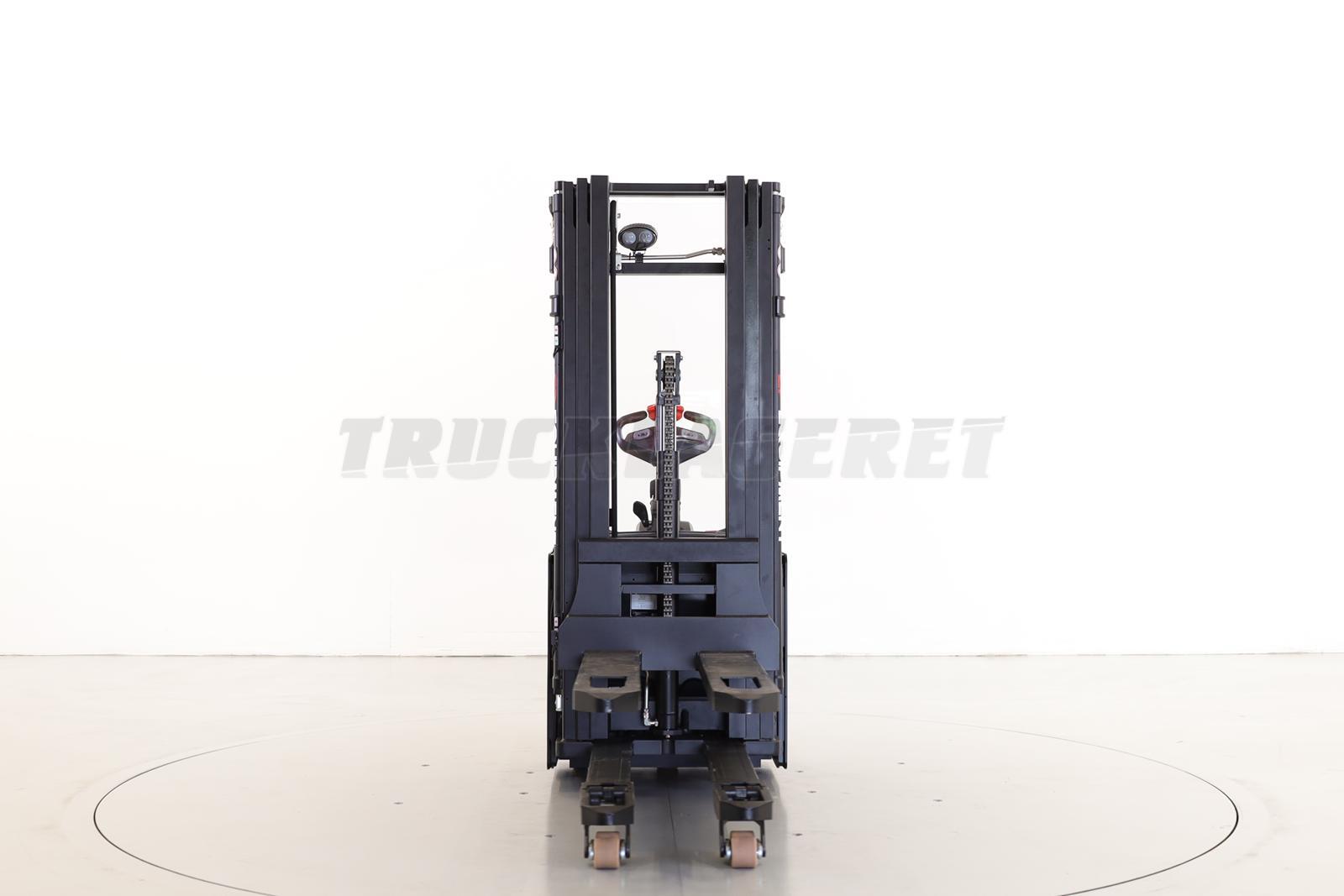

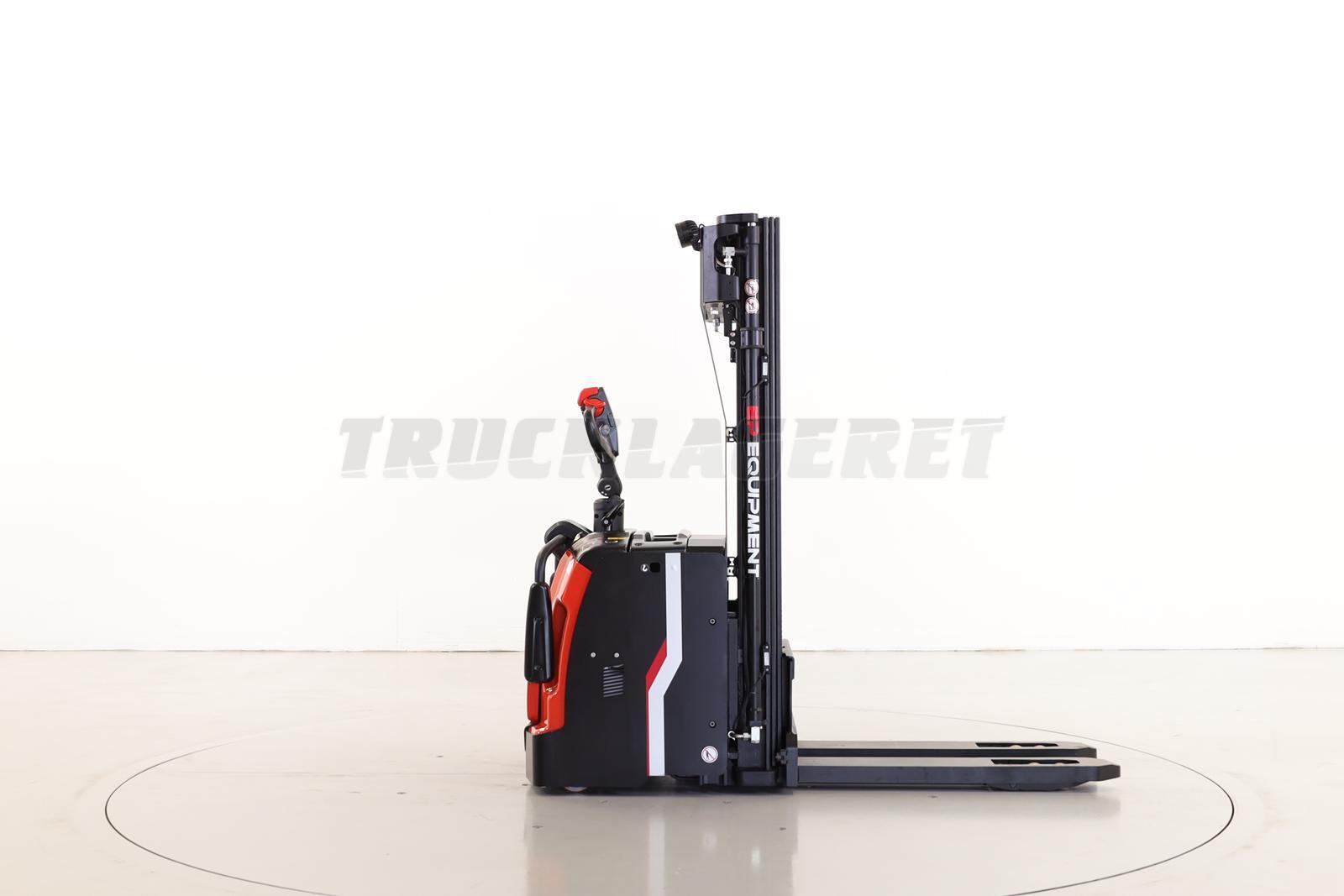

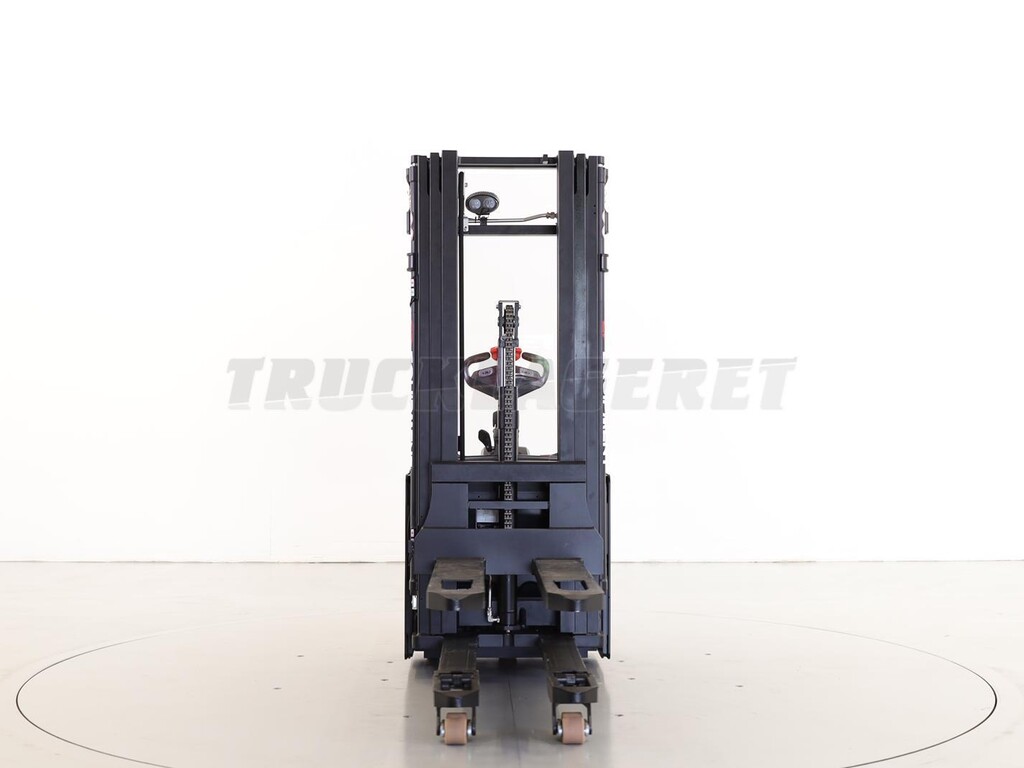

EP RSL161i

(ES0945)

DKK 0,00

Excl. VAT and delivery costs

GET IN TOUCH - CLICK HERE ADD TO FAVORITES

Internal no.
ES0945
Brand
EP
Model
RSL161i
Capacity (kg)
2000/1600
Load centre distance (mm)
600
Lift height (mm)
4500
Height (mm)
2020
Fork length (mm)
1150
Fork measurements (mm)
65x170x1150
Length to fork face (mm)
971
Width (mm)
850
AST mål (mm)
2602
Fork carriage width (mm)
570
Masttype
Triplex
Free lift (mm)
1630
Initialløft (mm)
120
Drive speed (km/t)
9/11
Lifting speed m/s
0,23/0,3
Sænkehastighed m/s
0,4/0,36
Energy
AC 3-phase
Engine type
4,5kw + 3kw
Transmission
Tranistor control
Drive wheels (size)
230x70
Type of tyres, drive wheels
Polyurethane
Battery
24V/205Ah Li-Ion
Charger
Li-Ion 24V/100A (fuld opladning af batteri på 2 timer via ladestik i siden)
Driver's place
Driver platform
Equipment
El-servo, initialløft, friløft, komfort førerplatform, usb stik på instrumentbord, hastighedsreduktion når man drejer eller ved fuld løftehøjde
Warranty
Note
Kapacitet: 2000 kg på initialløft/benene - 1600 kg på gaflerne
Condition
New
